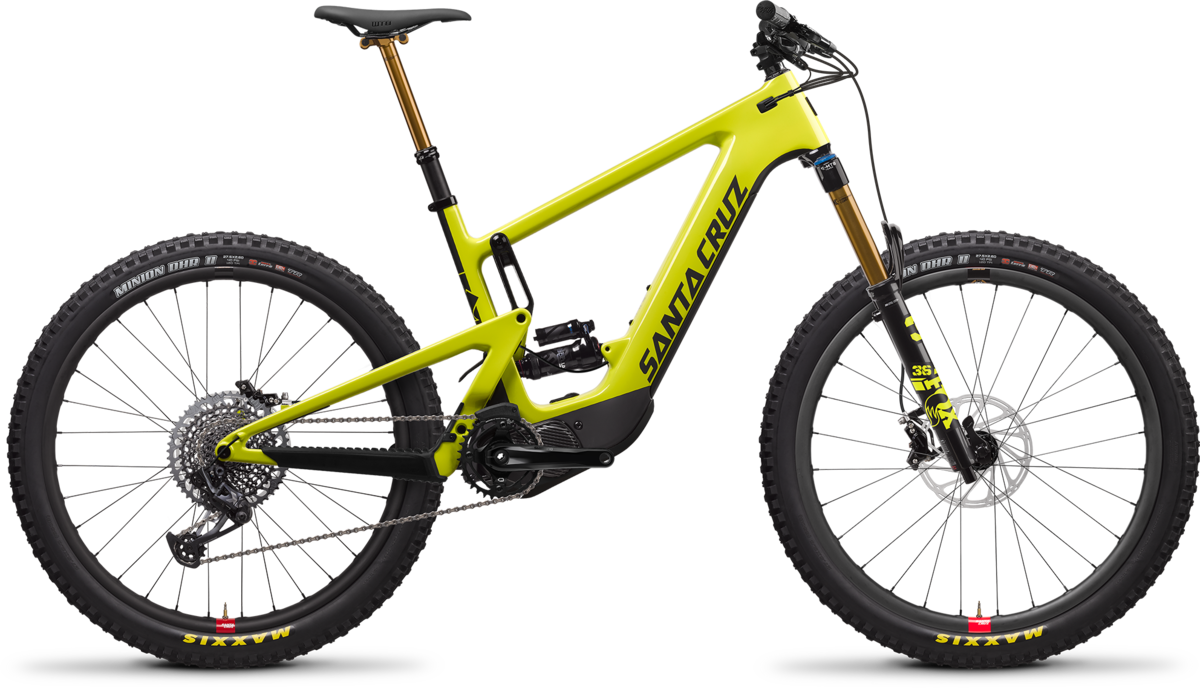

Santa Cruz Heckler CC X01 RSV

Santa Cruz Heckler CC X01 RSV
  • Color: Yellowjacket and Black
  • Color: Blackout and Copper
Color: Yellowjacket and Black
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.


The Heckler is about expanding your own trail map—accessing previously unreachable trails, unlocking less-used trails, and doing so independently. The full carbon frame and interchangeable 504Wh battery keep the weight down compared to bikes with larger batteries, but it's fast and easy to put in a fresh battery for even bigger, longer days.

The new Shimano EP8 motor is lighter than the previous unit (380g), has more power (85Nm versus 75Nm), smaller volume (-10%) for greater ground clearance, less drag (50%), more heat resistant, and tuned to give more power in Trail mode. All this means it's even more capable of tackling longer, tougher rides.

Like every Santa Cruz bike, the Heckler is built for the rigors of true mountain biking. Shimano electronics were chosen for their refinement and reliability, while quality pivot hardware, easily replaceable radial bearings, and no-nonsense internal cabling were considered with a mechanic's sanity in mind!

bike frame with labeled dimensions
Bike Sizes:
A. Reach 425mm 445mm 465mm 490mm 515mm
B. Stack 597mm 606mm 620mm 634mm 655mm
C. Standover 720mm 745mm 743mm 741mm 741mm
D. Effective Top Tube 572mm 595mm 619mm 650mm 682mm
E. Head Tube Angle 65.5° 65.5° 65.5° 65.5° 65.5°
F. Head Tube Length 110mm 120mm 135mm 150mm 175mm
G. Seat Tube Angle 76.2° 76.1° 76° 75.9° 75.4°
H. Seat Tube Length 390mm 405mm 430mm 460mm 500mm
I. Bottom Bracket Height 346mm 346mm 346mm 346mm 346mm
J. Bottom Bracket Drop 13mm 13mm 13mm 13mm 13mm
M. Wheelbase 1187mm 1211mm 1237mm 1268mm 1304mm
N. Front to Center 742mm 766mm 792mm 823mm 859mm
Crank Length 165mm 165mm 165mm 165mm 165mm
Stem Length 50mm 50mm 50mm 50mm 50mm
Seatpost Length 125mm 125-150mm 150-175mm 170-175mm 170-200mm


Frame Full Carbon CC
Fork FOX 36-E Float Factory, 160mm, 27.5"
Rear Shock RockShox Super Deluxe Select Ultimate
Rims Reserve DH 27.5" Carbon
Hubs Front: DT Swiss 350, 15x110, 28h
Rear: DT Swiss 350, 12x148, XD, 32h
Spokes Sapim D-light
Tires Maxxis Minion DHR II, 27.5x2.6", EXO+ TR
Crankset Shimano EM900 HollowTech Crank Arms, 165mm
Shifters SRAM X01 Eagle Single Click, 12spd
Rear Derailleur SRAM X01 Eagle
Cassette/Freewheel SRAM XG1295 Eagle 10-50T
Chain SRAM X01 Eagle 12 SPD
Brakes SRAM Code RSC
Rotors Avid Centerline 200mm
Handlebars Santa Cruz Di2 Carbon, 25mm rise
Tape/Grips Santa Cruz Palmdale Grips
Stem Burgtec Enduro MK3 42mm
Headset Cane Creek 40 IS Integrated Headset
Seatpost Fox Transfer Factory
Saddle WTB Silverado Team Saddle
Pedals Sold separately
Accessories & Extras E13 E-Spec+ AL chainguide
Stans Sealant, 2oz
Motor Shimano Drive Unit DU-EP800
Battery Shimano 504Wh Integrated
Controller/Display Shimano Display Unit SC-EM800
Charger Shimano Battery Charger

* Subject to change without notice.

Part Numbers

Option UPC MPN
Yellowjacket and Black / Small 192219188324 58-21216-113-2-682-413202-01
Yellowjacket and Black / Medium 192219188065 58-21216-113-3-682-413202-01
Yellowjacket and Black / Large 192219187808 58-21216-113-4-682-413202-01
Yellowjacket and Black / X-Large 192219187549 58-21216-113-5-682-413202-01
Yellowjacket and Black / XX-Large 192219187280 58-21216-113-6-682-413202-01
Blackout and Copper / Small 192219188447 58-21216-113-2-681-413202-01
Blackout and Copper / Medium 192219188188 58-21216-113-3-681-413202-01
Blackout and Copper / Large 192219187921 58-21216-113-4-681-413202-01
Blackout and Copper / X-Large 192219187662 58-21216-113-5-681-413202-01
Blackout and Copper / XX-Large 192219187402 58-21216-113-6-681-413202-01
